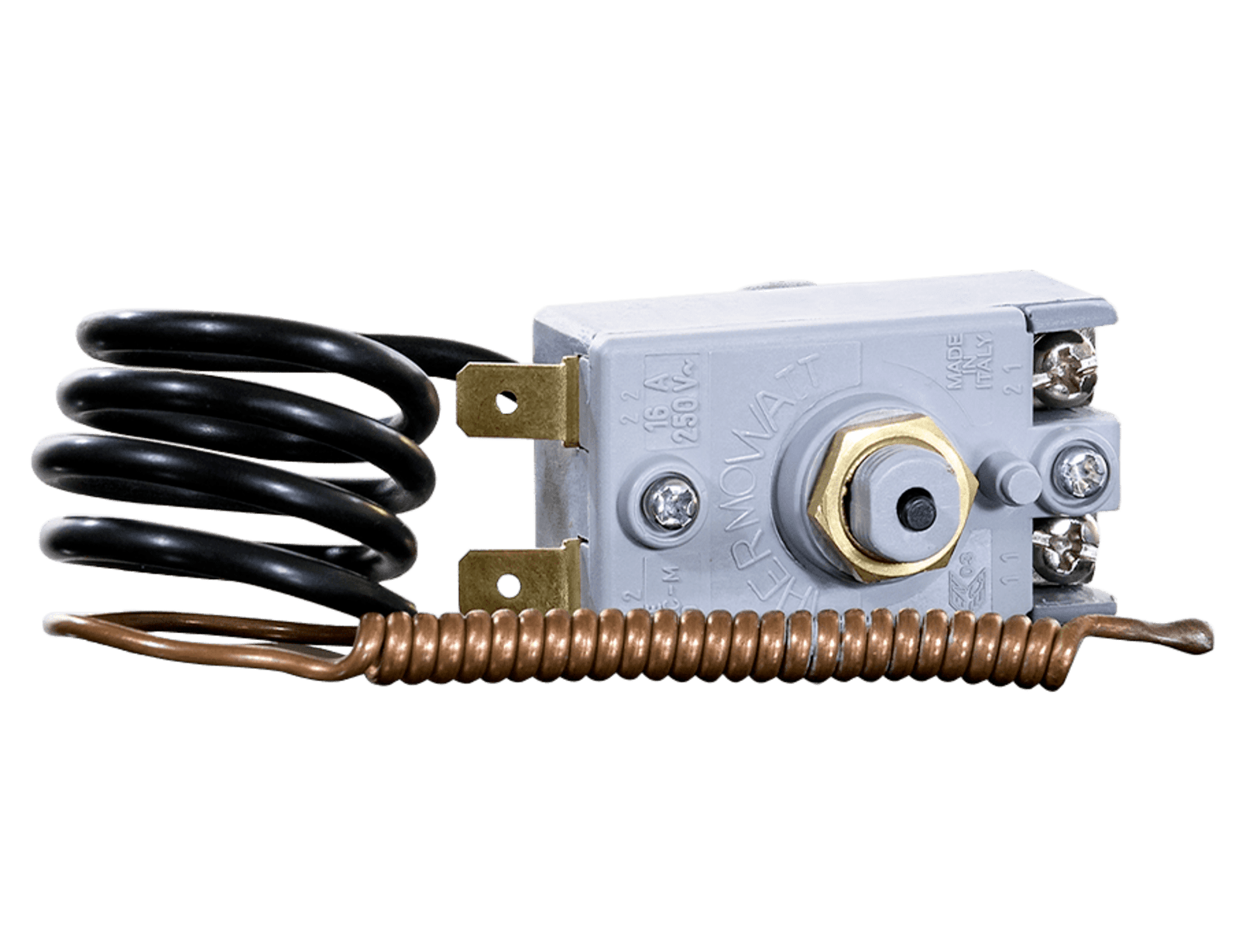

Description
| FUNCTIONAL DISCONNECTION | N.A. |
| SAFETY DISCONNECTION | Bi-polar |
| SAFETY CUT-OUT TECHNOLOGY | Bulb |
| SAFETY RESET | Manual |
| FAILSAFE | Yes |
| MAX ROOM TEMPERATURE | 90 °C |
| RATED CURRENT / VOLTAGE | SPC-M: 16 A / 250 V
SPC-F: 20 A / 250 V |
| CAPILLARY MATERIAL | Copper |
| SAFETY CUT-OUT TEMPERATURE (FACTORY SETTING) | From 50 °C to 115 °C, according to Customer specification |
| SAFETY CAPILLARY LENGHT | 500 mm / 650 mm / 900 mm / 1.200 mm |
| CAPILLARY MATERIAL | Copper |
| SAFETY BULB LENGHT | 55 mm |
| SAFETY BULB DIAMETER | 6 mm |
| ELECTRICAL CONNECTION TO HEATING ELEMENT | SPC-M: Screw terminals / Faston terminals 6,3 mm x 0,8 mm SPC-F: Faston terminals 6,3 mm x 0,8 mm |
