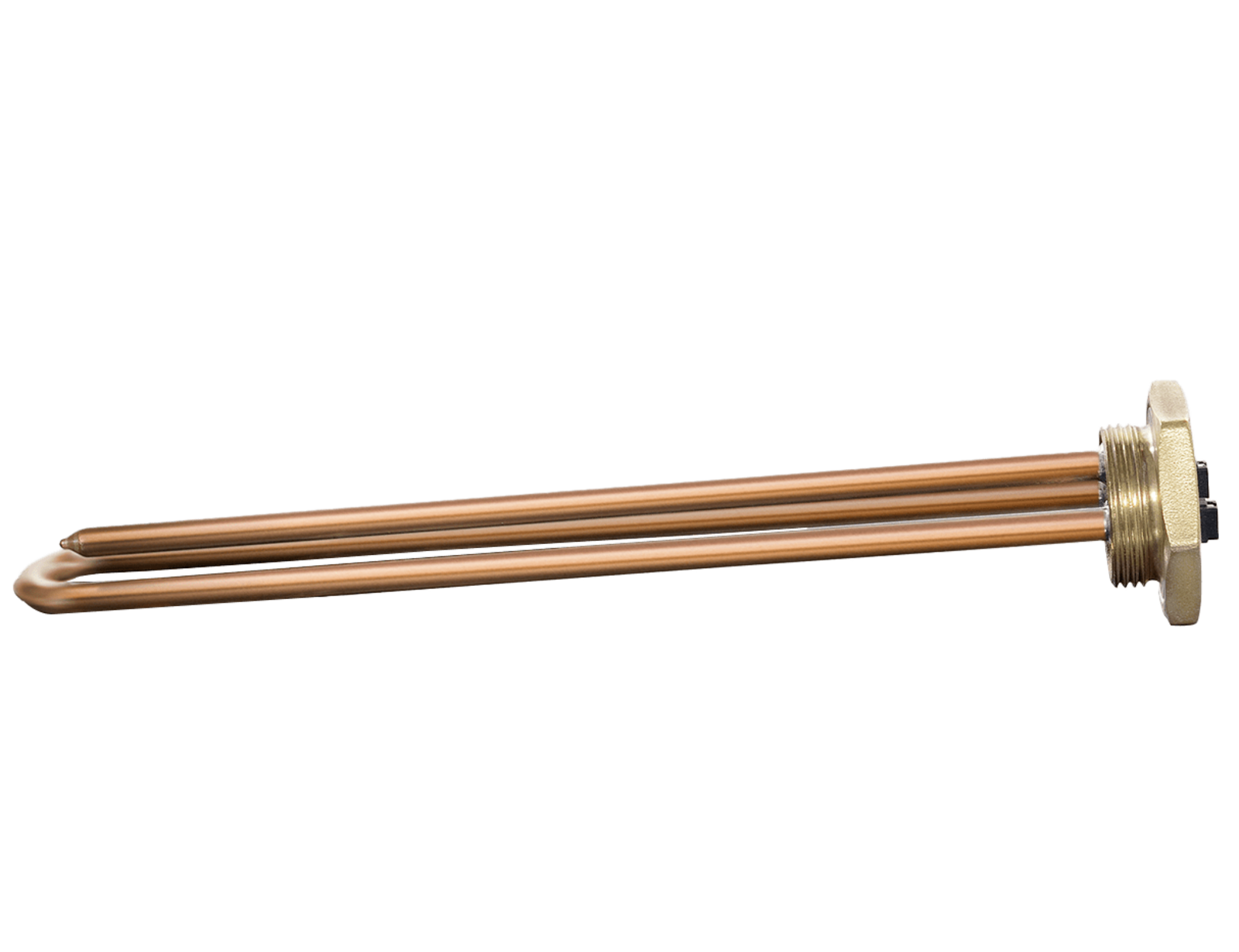

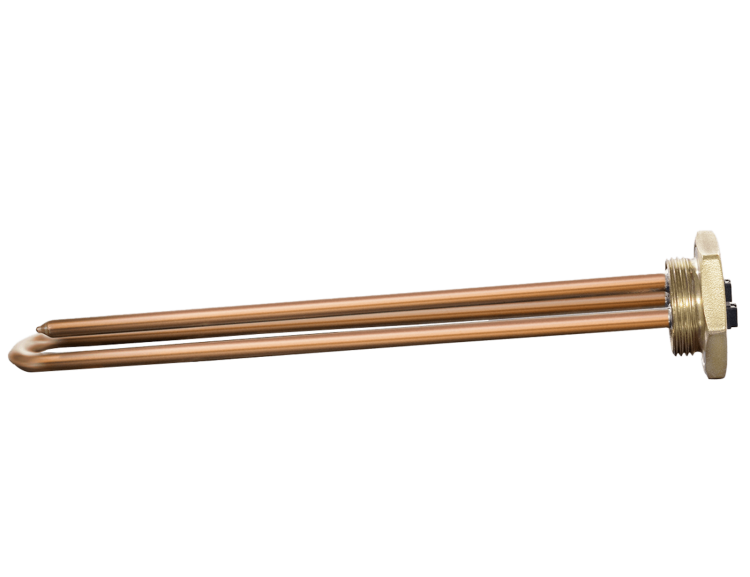

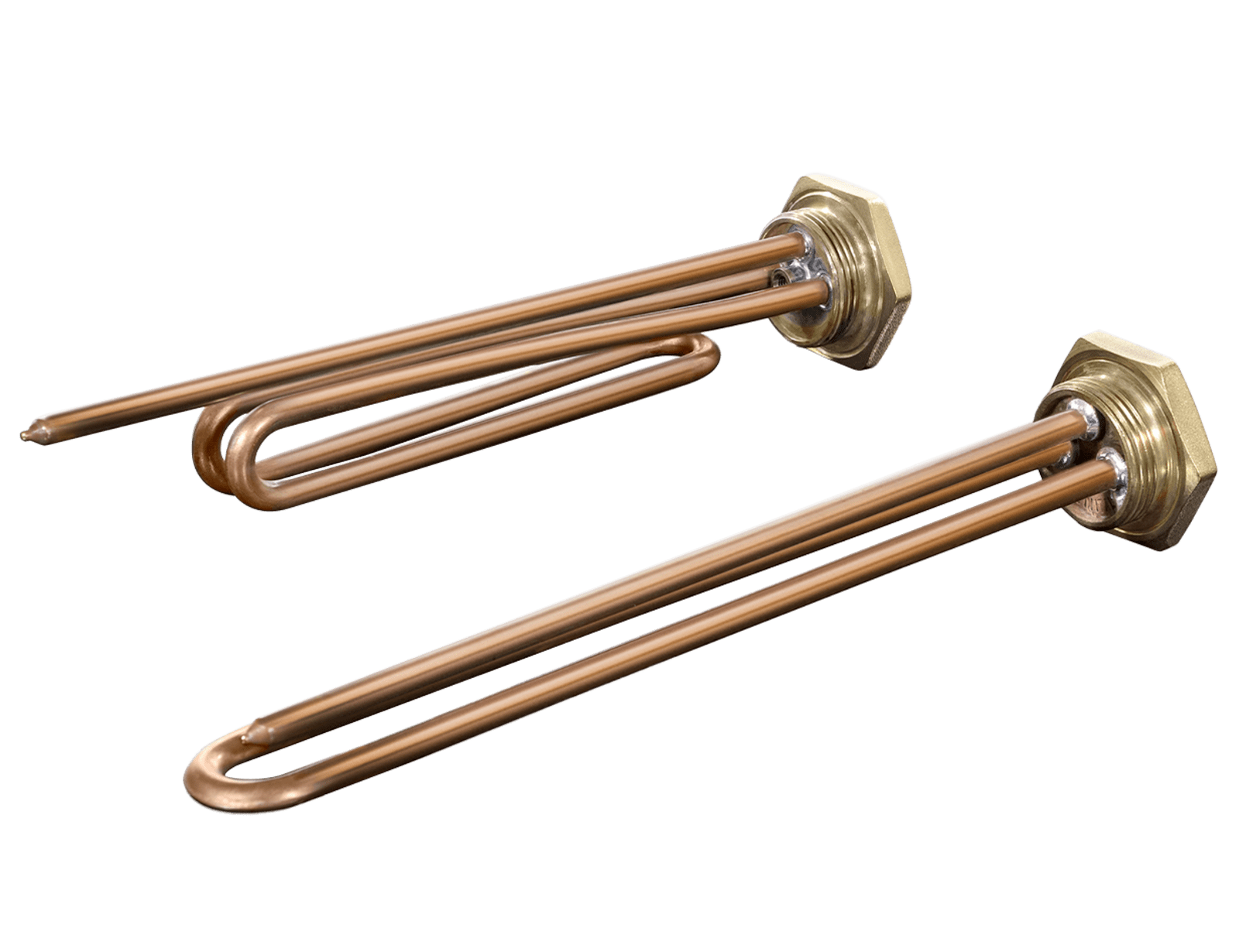

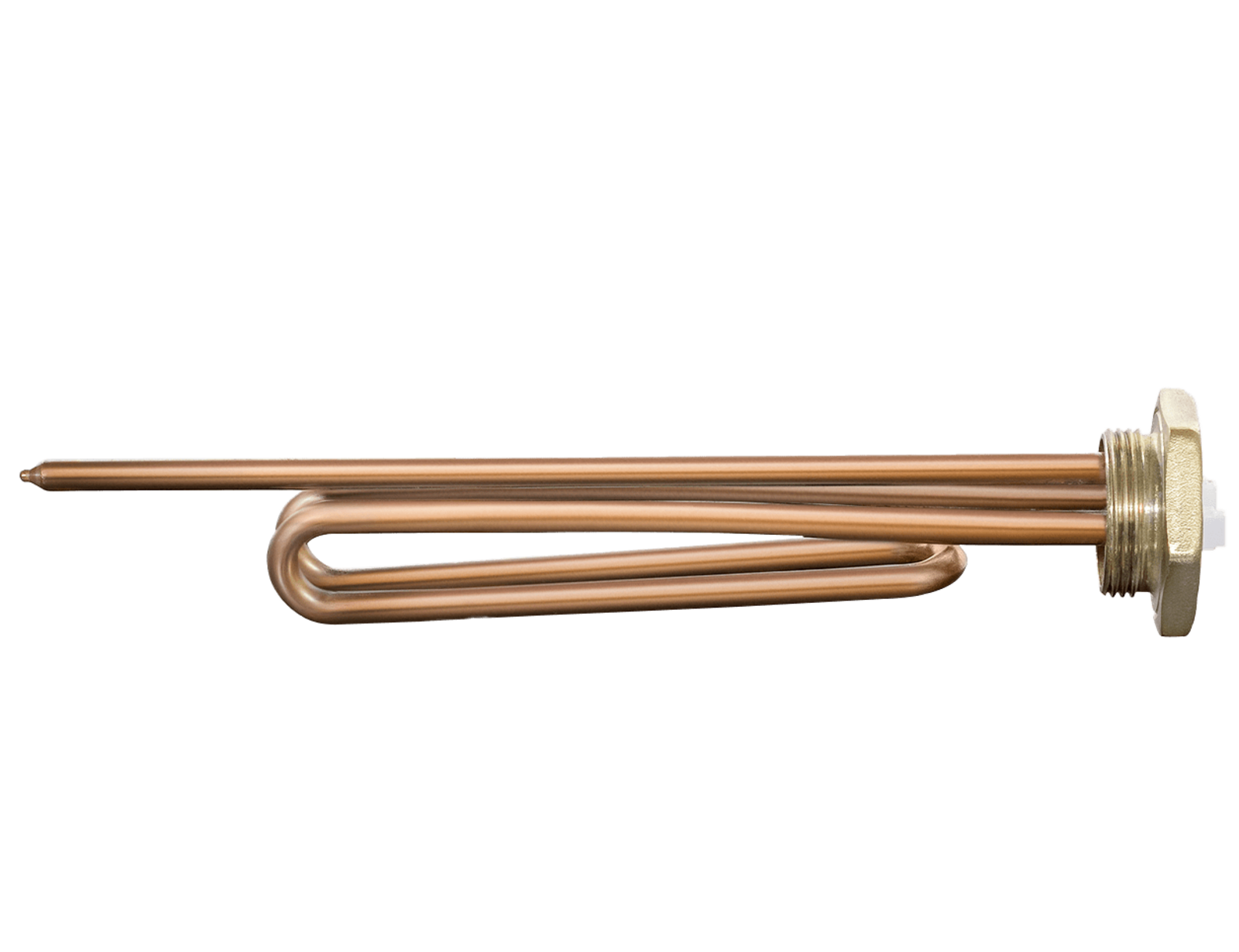

SCREW TYPE HEATING ELEMENTS

CHARACTERISTICS

Brass threaded flange from 1”1/4 to 2”1/4
Thermostat pocket to control temperature
Female faston connections to ensure easy plug-in with Thermowatt thermostat
Customizable material (e.g., copper, stainless steel, high grade nickel alloy, titanium)
Customizable power, shape and connections
ITek Brazing, maximum performance patented solution suitable for all the materials

Description

HEAD TYPE	Screw
SCREW MATERIAL	Brass
SCREW THREAD	From 1″1/4 to 2″, according to Customer specification
ELEMENT MATERIAL	Copper / Stainless steel (AISI) / High grade nickel alloy (INCOLOY) / Titanium
ELEMENT DIAMETER	8,5 mm
ELEMENT SHAPE AND DIMENSION	According to Customer specification
RATED VOLTAGE	Up to 240 V single-phase or up to 480 V three-phase, according to Customer specification
RATED POWER	According to Customer specification
SURFACE LOAD	Up to 20 W/cm^2
THERMOSTAT AND SENSOR POCKET MATERIAL	Copper / Stainless steel (AISI) / High grade nickel alloy (INCOLOY) / Titanium
THERMOSTAT AND SENSOR POCKET DIAMETER	8 mm / 8,5 mm
THERMOSTAT AND SENSOR POCKET LENGHT	According to Customer specification
ELECTRICAL CONNECTION	Faston terminals / Screw terminals, according to Customer specification
ANODE CONNECTION	With (M6 thread) / Without
